The Act-Labs USB PC Light Gun

Introduction

Back in September of 2003 Kevin reviewed the older model of the Act-Labs PC USB Light Gun, but since then there has been an updated model released. The new model sports a much different form factor and actually looks like a real pistol having shed the previous model's "ray-gun" look.

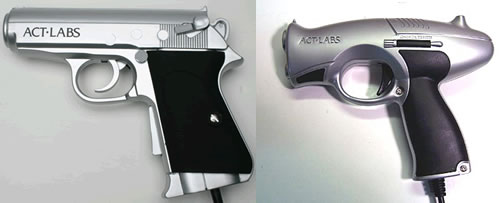

The newer "007" Act-Labs light gun and the older "ray-gun" inspired model - (not to scale)

This new model deserves a fresh look to see what else may have changed that will effect your retro gaming experience if you consider purchasing this newer, more ascetically realistic offering from Act-Labs.

Up close and personal

The findings in this review parallel some of the findings as published by Kevin in his September 2003 review. With this in consideration, I have kept the same format found in his review in order to attempt an apples to apples comparison of the two units which should help those wishing to compare the two devices and their respective reviews.



First Impressions

At this point I really need to note that the review unit used in this article was provided by Rick Baretto at Dream Authentics. While the pistol and other hardware provided by Rick will be the same that you will get if ordering from Act-Labs, it is possible that there will be some differences in what is shipped with the gun and how it is packaged.

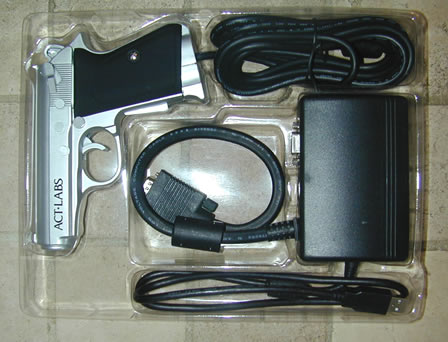

The gun as shipped from Dream Authentics

The pistol was shipped in a plastic tray which contained all of the controller components and connectors as well as a three page (two-sided) instructional manual.

Sneak Peek: Check out the manual in a download available from Act-Labs

As I am not very familiar with various types of actual pistols, I asked the good folks at Build Your Own Arcade Controls what real gun the Act Labs controller was modeled after. After a few false starts, the answer became clear and it is fairly obvious that the newer design is based on none other than the trusty Walther PPK sported by English Secret Agent, James Bond. Thanks to Markvp at BYOAC for the help!

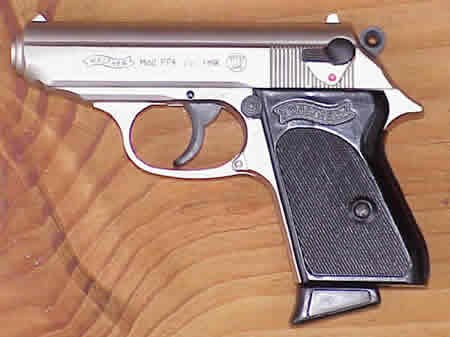

007's weapon of choice - The Walther PPK

Like its ray-gun predecessor, this model has a silver and black color scheme, though the grip is plastic rather than a rubberized material. It is very lightweight, coming in at about 0.24 Lbs, and 0.58 Lbs if you factor in the full weight of the cord.

As reported by Kevin on the previous model, this one to has some plastic "creak." If you grip the unit tightly or apply pressure to any area of the gun, there is a noticeable creaking which detracts a bit from the fantasy of bearing a true weapon. Under normal game play this is not noticeable.

The trigger on this unit emulates a left-mouse click and the hammer emulates a right-mouse click. This is called the reload button in the documentation. There is another small black button on the right side of the gun that is connected to the "hammer reload" function. In all you have two inputs available.

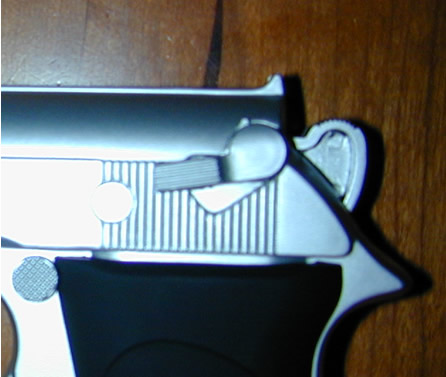

The hammer "reload button" and the calibration lever

I did not like the feel of the small black button on the right side of the gun as it has a very small diameter and profile making it hard to press repeatedly. It feels and looks as though some finished button top was not added.

The small black "reload button" above the trigger

There is also a button located on the front of the gun's grip that sadly appears to be glued solid. It would have been nice if this were operational and provided a third input to map for games like Turkey Shoot in which you need more than two (fire, grenade, gobble).

The grip button that sadly is glued in place

Lastly you have a calibration lever (pictured above) that is located on the left side of the gun. Pushing this down engages the calibration routine and pushing it back up resumes normal display and game play. More on this below.

As mentioned above the gun came with a three page instructional pamphlet that is easy to read and very straight forward. No complaints there at all.



Installation

The installation of the new model is exactly the same as installation of the previous model so I have included Kevin's notes from that review below. One note to add though is that you should be careful when connecting the gun to the light gun control box. This connector, on the review model, has a small metal tab or dimple that is supposed to line up the other pins properly before inserted. What I found was that there is some play there and it is possible, I know because I did it, to bend a pin that does not line up correctly. I bent one and had to use needle-nose pliers to straighten it out. Be careful.

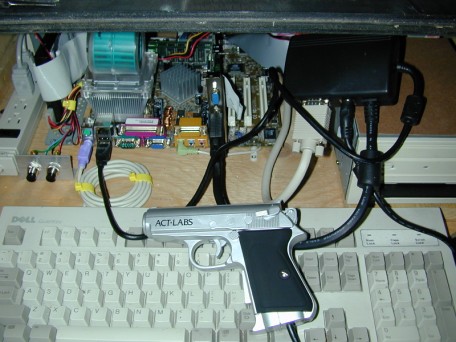

The review unit installed

From Kevin's notes -

"Installation of the ACT-Labs light gun, while not quite as simple as a simple USB “plug-and-play” operation, is almost so. To install the light gun, you first plug in the USB cable from the control box and then let Windows recognize the device. There are no drivers involved.

After you've plugged in the USB cable, you then detach your monitor's VGA cable from your video card, and plug it into the light gun control box. Once you've attached the monitor to the control box, you plug the control box's VGA cable into your PC's video card.

That's it. You're done with the installation, except for calibrating the gun."



Calibration

The calibration too is the same with both models so again I include Kevin's notes below with some additions.

From Kevin's notes -

"To calibrate the light gun, you simply slide the calibration switch on the right side of the gun. This turns the PC display white, and then you point the gun at the screen and wave the gun up and down and left and right in front of the screen while holding the gun about three inches away from the monitor. Flick the calibration switch again, and you're ready to start blasting things.

You'll need to re-calibrate the gun each time you change screen resolutions, but it's fairly painless to do this, and only takes a second. Gun accuracy is greatly increased by calibrating it."

I did experience some calibration issues early on, but after reading the docs at the Act-Labs site I realized my error. You need to make sure you do not have black space around the the game screen, it should take up the entire screen. For best results hold the gun between 1 and 3 inches from the screen to calibrate. More on the calibration procedure can be found on the Act-Labs FAQ.



Game play

My notes in this area are similar to Kevin's findings with the previous model. The gun is generally very accurate when calibrated properly. As with the older model, it is important to re-calibrate when you load each game as different games have different resolutions.

To see the calibration process, check out the video review of the older model, the procedure has not changed for the newer version. (WMV)

Partly due to my failing eyesight, though I was using a 25" monitor, I found the gun to be most enjoyable at a distance of only a couple feet from the screen. For some games like Turkey Shoot that required me to be able to reach the control panel, this was a necessity. Again, more inputs would have been a great addition to the gun.

mmmm...them Turkeys is good eatin'

This model, like the older one, also has the white flash onscreen when you pull the trigger. This is a by-product of how the gun determines where your shot has landed. There is a decent explanation of this process at "How Stuff Works."

How Stuff Works: How does the light gun for a video game work?

The other by-product of this process is that unless the trigger has been activated, the game you are playing has no idea where the pistol is aimed. In games that have cross hairs for targeting purposes, the cross hairs are generally useless. They will not reposition until you fire and then they will simply appear at the location of that shot. They will not move again until you fire again.

Out of the box with Mame32, off screen reload does not work either. This can be a real bummer, but MAME Analog+ is purported to have a workaround that will enable this feature with the Act-Labs gun.



Compatibility

As with the older model, the newer gun requires a PC with a Windows 98SE, ME, 2000, or XP operating system. There is still no support for LCD/TFT displays and the controller requires a VGA monitor. It does now support a higher resolution of 2048 x 1940 which is a step up from the previous model's limit of 1600x1200. This model too has support for 3D cards.

While the previous model did not officially support two guns, Kevin did note that he had seen it done with MAME Analog+ and Windows 98.

If you do not want to try this trick, Act-Labs does offer a gun that has been enabled for two-player support. You will need one normal USB PC gun and one "Dual 2-Player Enabled PC USB Light Gun" in order to take advantage of this new feature. We did not test this so we will have to take it on faith from Act-Labs.

The test bed used in the review

There is also a TV-Out version available for those who game on the boob tube. Again this is a separate gun so you need to make sure you know what display you will be using before you order.

Kevin reported limited light game game support for the previous model in 2003, but it would appear that this has changed since that time. On the Act-Labs site, I found a listing of over 100 PC compatible games, though I only tested this unit in Mame32.



Conclusions

Overall I was happy with the controller and being able to try out the gun games in Mame without having to use the mouse was a nice enhancement to my home arcade. I think with some additional inputs and maybe a little more attention to the fit and finish, this would be a nearly perfect option for use on a Mame cabinet.

One big change from the previous model is the price which I found a bit high. The older ray-gun model sold for about $35 retail, while the newer PC USB gun will set you back $79.99 from Act-Labs. The dual player version and the tv-out unit are each priced at $99.00.

Once you get past the price though, the difference between a system WITH a light gun and without makes it worthwhile in my opinion. But then again, I'm not in this hobby because I'm practical.

Pros

  • Cool looking
  • Easy to install
  • No drivers needed
  • Reasonably accurate

Cons

  • White “flash” with each shot annoying to some
  • Not easily detached from system
  • Cross hairs do not move with your aim
